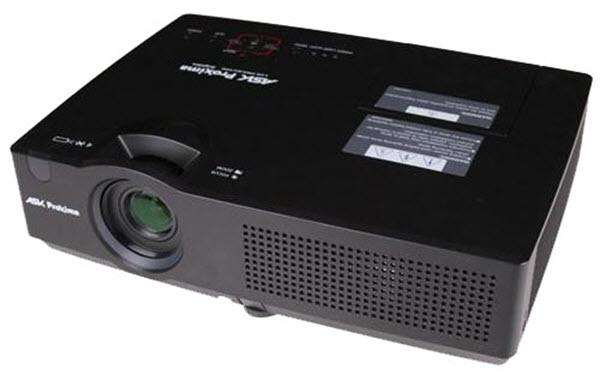

Proxima C2317W Projector

WXGA Conference Room Projector
Calculate Throw Distance

The Proxima C2317W Projector is a WXGA Conference Room Projector. This lamp based projector is capable of displaying 3,100 Lumens at its brightest setting with a native resolution of 1280x800 . The internal 3LCD technology is an innovative 3-chip design that sets itself apart by delivering vibrant, true-to-life images with better color brightness and a wider color gamut. This projector was first available for purchase in March 2011 and has been by Proxima.



Proxima C2317W Projector Specifications


MSRP
$786
User Reviews
Review this Projector
Status
Discontinued
Released
March 2011
Warranty
2 Years

Switch to Metric
White Brightness
3,100 ANSI Lumens / 2,400 Lumens
Resolution
1280x800
Aspect Ratio
16:10 (WXGA)
Contrast
2,500:1
Dynamic Iris
Yes
Display Type
0.59" 3LCD Chips
Color Processing
8-bit
Video Modes
720p, 1080i, 1080p/60, 1080p/25, 1080p/50, 1035i, 768p, 480p, 480i
Data Modes
MAX 1600x1200

Lamp Type
230W NSH bulb
Lamp Life
3,000 hours  / 4,000 hours

Included Lens
1.2x manual zoom , manual focus
Optional Lenses
No
Lens Shift
No
Throw Distance
6.1' - 30.0'  Calculate Throw Distance
Image Size
48.49" - 286.84"
Throw Ratio
1.48:1 - 1.78:1
Projector Placement
For a
"
diagonal screen, place the projector lens between 10'-6" and 12'-7" from the screen.
Digital Zoom
Yes
Digital Keystone
Vertical only

Projector Size
13.00" x 9.60" x 3.50"
Weight
6.4 lbs
Audible Noise
32 dB  / 29 dB
Internal Speakers
3.0 Watts × 2
Power
280 Watts 100V - 240V
Connection Panel
Component
Composite: RCA
HDMI
Network: RJ-45
RS232: DB-9pin
S-Video
VGA In: Dsub-15pin

Features
Closed Captioning
Operate 24/7
Blackboard Mode
Soft Carrying Case
Additional Features
Customized startup logo
