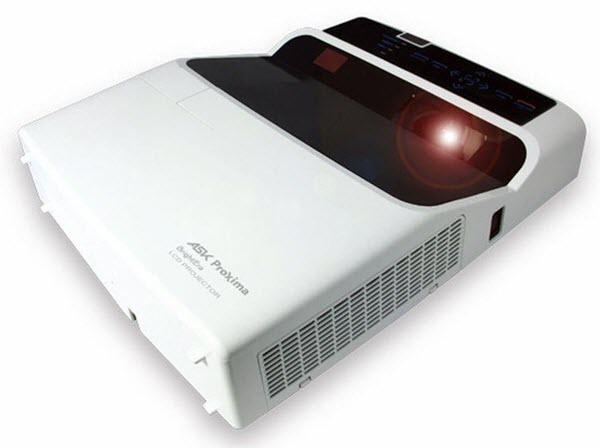

ASK Proxima US1325-A Projector

XGA Ultra Short Throw (UST) Projector
Calculate Throw Distance

The ASK Proxima US1325-A Projector is a XGA Ultra Short Throw (UST) Projector. This lamp based projector is capable of displaying 3,100 Lumens at its brightest setting with a native resolution of 1024x768 . The internal 3LCD technology is an innovative 3-chip design that sets itself apart by delivering vibrant, true-to-life images with better color brightness and a wider color gamut. This projector is not being produced by ASK Proxima any longer and was .



ASK Proxima US1325-A Projector Specifications


MSRP
n/a
Status
Discontinued
User Reviews
Review this Projector


Switch to Metric
White Brightness
3,100 ANSI Lumens
Resolution
1024x768
Aspect Ratio
4:3 (XGA)
Contrast
2,000:1
Display Type
0.63" 3LCD Chips
Color Processing
8-bit
Video Modes
720p, 1080i, 1035i, 576i, 576p, 480p, 480i
Data Modes
MAX 1600x1200

Lamp Type
215W UHP bulb
Lamp Life
4,000 hours  / 6,000 hours

Included Lens
Fixed focal length , manual focus
Optional Lenses
No
Lens Shift
No
Throw Distance
1.2' - 2.1'  Calculate Throw Distance
Image Size
58.06" - 101.61"
Throw Ratio
0.31:1
Projector Placement
For a
"
diagonal screen, place the projector lens 2'-1" from the screen.
Digital Keystone
Vertical only

Projector Size
4.30" x 16.50" x 13.60"
Weight
12.1 lbs
Audible Noise
36 dB
Internal Speakers
10.0 Watts Mono
Power
300 Watts 100V - 240V
Connection Panel
Composite: RCA
HDMI x 2
Network: RJ-45
RS232: DB-9pin
S-Video
USB
VGA In: Dsub-15pin x 2

Features
Short-Throw
Additional Features
Automatic keystone correction and inverted image for ceiling mount applications
