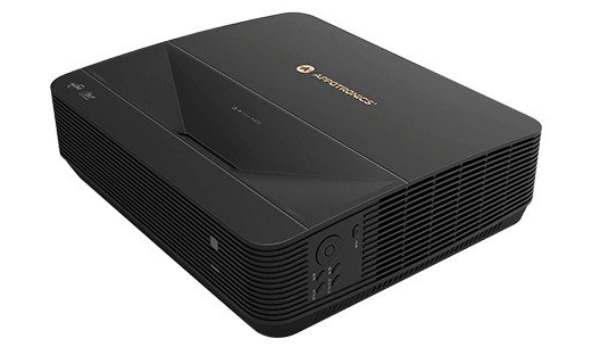

Appotronics AL-UU535A Projector

WUXGA Ultra Short Throw (UST) Projector
Calculate Throw Distance

From Appotronics — The Appotronics AL-UU535A projector has an ultra-short throw of 0.25. It has a rich array of input and output types including 2 HDMI inputs.

  • 5,000 ISO lumens
  • REC 709
  • 100,000:1 dynamic contrast ratio

Product Downloads



Appotronics AL-UU535A Projector Specifications


MSRP
$5,199
Best Used For
Status
Shipping
Released
May 2022
User Reviews
Review this Projector

Switch to Metric
Brightness
5,000 Lumens (ISO)2
Resolution
1920x1200
Aspect Ratio
16:10 (WUXGA)
Dynamic Contrast
100,000:1
Display Type
0.47" DLP x 1
Color Processing
8-bit
Video Modes
720p, 1080i, 1080p/60
Data Modes
MAX 1920x1200
3D Modes
Full HD 3D

Lamp Type
Laser Phosphor
Lamp Life
20,000 hours

Included Lens
Fixed focal length
Optional Lenses
No
Lens Shift
No
Throw Distance
1.0' - 3.0'  Calculate Throw Distance
Image Size
56.60" - 169.81"
Throw Ratio
0.25:1
Digital Keystone
Horizontal & Vertical

Projector Size
6.00" x 19.10" x 6.60"
Weight
21.1 lbs
Audible Noise
35 dB
Internal Speakers
No
Power
430 Watts 100V - 240V
Connection Panel
Audio In: Mini Jack
Audio Out: Mini Jack
HDMI x 2
Network: RJ-45
RGB In: BNC
RS232: DB-9pin
S-Video
USB
VGA In: Dsub-15pin
VGA Out: Dsub-15pin

Features
Short-Throw
Full HD 3D
Geometric Correction

Compare to the Competition




Similar Projectors

Epson PowerLite L630U

  • Resolution: 1920x1200 3LCD
  • Brightness: 6200 Lumens (ISO)1
  • Light Source: Laser
  • Throw Distance: 9'-6" — 15'-7"
  • at Image Size: 100 "
$3,308
Jun 2021 Model
Epson PowerLite L630SU

  • Resolution: 1920x1200 3LCD
  • Brightness: 6000 Lumens (ISO)1
  • Light Source: Laser
  • Throw Distance: 6'-0" — 7'-7"
  • at Image Size: 100 "
$4,181
May 2021 Model
Epson PowerLite L530U

  • Resolution: 1920x1200 3LCD
  • Brightness: 5200 Lumens (ISO)1
  • Light Source: Laser
  • Throw Distance: 9'-6" — 15'-7"
  • at Image Size: 100 "
$2,651
Jun 2021 Model
Epson PowerLite L635SU
  • Resolution: 1920x1200 3LCD
  • Brightness: 6000 Lumens (ISO)1
  • Light Source: Laser
  • Throw Distance: 6'-0" — 7'-7"
  • at Image Size: 100 "
$4,161
May 2021 Model
Epson PowerLite L520U

  • Resolution: 1920x1200 3LCD
  • Brightness: 5200 Lumens (ISO)1
  • Light Source: Laser
  • Throw Distance: 9'-6" — 15'-7"
  • at Image Size: 100 "
$2,549
Jun 2021 Model

ANSI LUMENS  is the most commonly accepted industry standard brightness measurement. The ANSI lumen rating measures the brightest white that a projector can produce by averaging nine light meter measurements taken across the projected image.

ISO LUMENS  is a near-ANSI equivalent used by some manufacturers in place of an ANSI measurement. The measuring technique is defined in the ISO 21118 specification.
