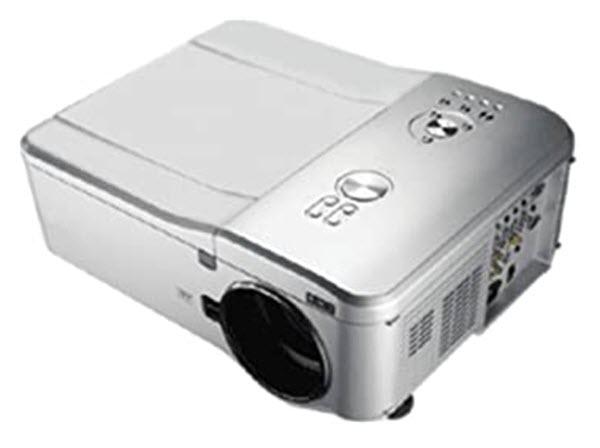

Boxlight PRO7501DP Projector

XGA Large Venue Projector
Calculate Throw Distance

The Boxlight PRO7501DP Projector is a XGA Large Venue Projector. This lamp based projector is capable of displaying 7,500 Lumens at its brightest setting with a native resolution of 1024x768 . The internal DLP technology touts higher contrast, less visible pixels and more portability. The unique projector lens has the ability to be shifted to allow greater flexibility in positioning the projector relative to the screen. This projector was first available for purchase in July 2010 and has been by Boxlight.



Boxlight PRO7501DP Projector Specifications


MSRP
$6,599
User Reviews
(1) Review this Projector
Status
Discontinued
Released
July 2010
Warranty
3 Years

Switch to Metric
Brightness
7,500 ANSI Lumens
Resolution
1024x768
Aspect Ratio
4:3 (XGA)
Contrast
2,500:1
Display Type
0.70" DLP x 1
Color Wheel
4 segments
Color Processing
8-bit
Video Modes
720p, 1080i, 480p, 480i
Data Modes
MAX 1600x1200

Lamp Life
2,000 hours  / 3,000 hours
Lamp Model
PRO5000SL-930  Buy Replacement Lamp

Included Lens
1.3x Powered zoom , Powered focus
Optional Lenses



Pro7500DP-910 Fixed 0.77:1
PRO7500DP-911 Zoom 1.33:1-1.79:1
PRO7500DP-912 Long Zoom 2.22:1-4.43:1
PRO7500DP-913 Long Zoom 4.43:1-8.30:1
Lens Shift
Horizontal & Vertical
Throw Distance
6.0' - 59.0'  Calculate Throw Distance
Image Size
38.30" - 497.19"
Throw Ratio
1.78:1 - 2.35:1
Digital Keystone
Horizontal & Vertical

Projector Size
7.70" x 20.40" x 15.60"
Weight
46.0 lbs
Audible Noise
35 dB  / 31 dB
Internal Speakers
3.0 Watts × 2
Power
730 Watts 100V - 240V
Connection Panel
12-Volt Trigger
Component: RCA
Composite: RCA
DVI Digital Input
Network: RJ-45
RGB In: BNC
RS232: DB-9pin
S-Video
USB
VGA In: Dsub-15pin

Additional Features
With a whopping 7500 lumen maximum capacity, this projector is ideal for big-impact presentations in large venues, even when the space is fully lit. *NO LENS
