Highlights

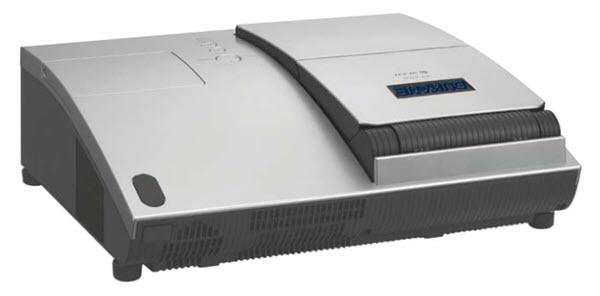

The Dukane ImagePro 8101H Projector is a XGA Ultra Short Throw (UST) Projector. This lamp based projector is capable of displaying 2,500 Lumens at its brightest setting with a native resolution of 1024x768 . The internal 3LCD technology is an innovative 3-chip design that sets itself apart by delivering vibrant, true-to-life images with better color brightness and a wider color gamut. This projector was first available for purchase in December 2009 and has been by Dukane. The Dukane ImagePro 8101H projector was manufactured by Hitachi as the CP-A52.

Product Downloads
Helpful Links


Dukane ImagePro 8101H Projector Specifications
- MSRP
- $3,115
- White Brightness
- 2,500 ANSI Lumens / 1,600 Lumens
- Resolution
- 1024x768
- Aspect Ratio
- 4:3 (XGA)
- Contrast
- 400:1
- Display Type
- 0.55" 3LCD Chips
- Color Processing
- 8-bit
- Video Modes
- 720p, 1080i, 576i, 576p, 480p, 480i
- Data Modes
- MAX 1600x1200
- Lamp Type
- 220W UHB bulb
- Lamp Life
- 2,000 hours / 3,000 hours
- Included Lens
- Fixed focal length , manual focus
- Optional Lenses
- No
- Lens Shift
- No
- Throw Distance
- 0.3' - 2.6' Calculate Throw Distance
- Image Size
- 60.00" - 150.00"
- Throw Ratio
- 0.38:1
- Projector Placement
- For a diagonal screen, place the projector lens 1'-4" from the screen.
- Digital Zoom
- Yes
- Digital Keystone
- Vertical only
- Projector Size
- 5.20" x 15.60" x 14.00"
- Weight
- 12.8 lbs
- Audible Noise
- 33 dB / 28 dB
- Internal Speakers
- 7.0 Watts Mono
- Power
- 340 Watts 100V - 240V
- Connection Panel
-
Component: RCAComposite: RCARS232: DB-9pin x 2VGA In: Dsub-15pin x 2
- Features
-
Short-ThrowClosed CaptioningBlackboard Mode
Compare to the Competition
More Dukane Projectors
Similar Projectors

Epson PowerLite 480*
- Resolution: 1024x768 3LCD
- Brightness: 3000 ANSI Lumens
- Light Source: Bulb
- Throw Distance: 1'-2"
- at Image Size: 100 "

Epson PowerLite 470*
- Resolution: 1024x768 3LCD
- Brightness: 2600 ANSI Lumens
- Light Source: Bulb
- Throw Distance: 1'-2"
- at Image Size: 100 "

NEC U300X*
- Resolution: 1024x768 DLP
- Brightness: 3000 ANSI Lumens
- Light Source: Bulb
- Throw Distance: 2'-8"
- at Image Size: 100 "

Casio XJ-ST155*
- Resolution: 1024x768 DLP
- Brightness: 3000 ANSI Lumens
- Light Source: Bulb
- Throw Distance: 4'-7"
- at Image Size: 100 "

Casio XJ-ST145*
- Resolution: 1024x768 DLP
- Brightness: 2500 ANSI Lumens
- Light Source: Bulb
- Throw Distance: 4'-7"
- at Image Size: 100 "
ANSI LUMENS is the most commonly accepted industry standard brightness measurement. The ANSI lumen rating measures the brightest white that a projector can produce by averaging nine light meter measurements taken across the projected image.
Manufacturer Cited Brightness:
BUYER BEWARE Either this projector's brightness specification does not cite an industry-accepted unit of measurement, or according to our calculations it seems unlikely that this projector is capable of producing the manufacturer's cited brightness specification.
Manufacturer Cited Brightness:
