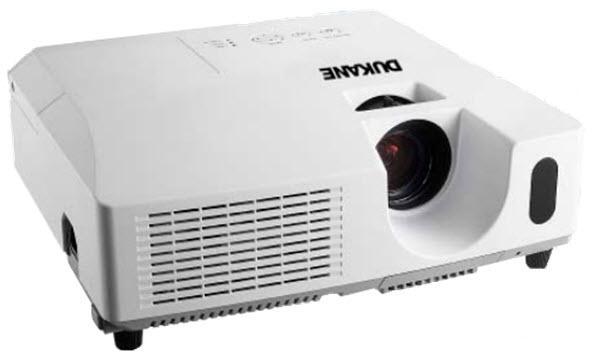

Dukane ImagePro 8920H Projector

XGA Conference Room Projector
Calculate Throw Distance

The Dukane ImagePro 8920H Projector is a XGA Conference Room Projector. This lamp based projector is capable of displaying 3,000 Lumens at its brightest setting with a native resolution of 1024x768 . The internal 3LCD technology is an innovative 3-chip design that sets itself apart by delivering vibrant, true-to-life images with better color brightness and a wider color gamut. This projector was first available for purchase in September 2009 and has been by Dukane. The Dukane ImagePro 8920H projector was manufactured by Hitachi as the CP-X3010.

Panasonic PT-VMZ50U
WUXGA Conference Room Projector

Dukane ImagePro 8920H Projector Specifications


MSRP
$2,115
Status
Discontinued
Released
September 2009
Warranty
5 Years
User Reviews
Review this Projector

Switch to Metric
White Brightness
3,000 ANSI Lumens / 2,400 Lumens
Resolution
1024x768
Aspect Ratio
4:3 (XGA)
Contrast
2,000:1
Dynamic Iris
Yes
Display Type
0.63" 3LCD Chips
Color Processing
8-bit
Video Modes
720p, 1080i, 1080p/60, 576i, 480p, 480i
Data Modes
MAX 1600x1200

Lamp Type
210W UHB bulb
Lamp Life
3,000 hours  / 6,000 hours
Lamp Model
DT01021  Buy Replacement Lamp

Included Lens
1.2x manual zoom , manual focus
Optional Lenses
No
Lens Shift
No
Throw Distance
3.4' - 29.7'  Calculate Throw Distance
Image Size
30.00" - 300.00"
Throw Ratio
1.49:1 - 1.76:1
Projector Placement
For a
"
diagonal screen, place the projector lens between 9'-10" and 11'-8" from the screen.
Digital Keystone
Vertical only

Projector Size
3.90" x 12.50" x 11.30"
Weight
7.9 lbs
Audible Noise
35 dB  / 29 dB
Internal Speakers
8.0 Watts × 2
Power
330 Watts 100V - 240V
Connection Panel
Component: BNC
Composite: RCA
RS232: DB-9pin
S-Video
USB
VGA In: Dsub-15pin x 2

Features
Closed Captioning
Blackboard Mode
