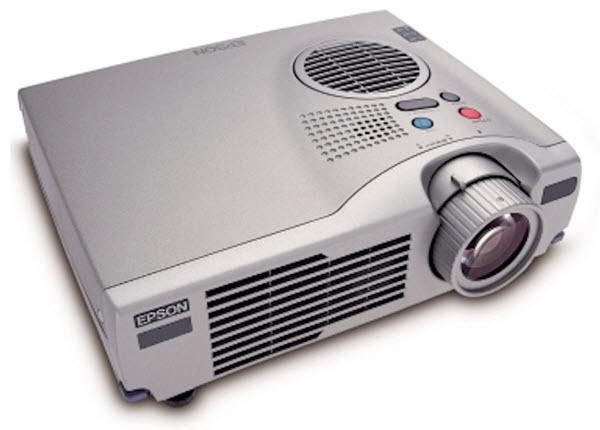

The Epson PowerLite 505c Projector is a SVGA Portable Projector. This lamp based projector is capable of displaying 1,100 Lumens at its brightest setting with a native resolution of 800x600 . The internal 3LCD technology is an innovative 3-chip design that sets itself apart by delivering vibrant, true-to-life images with better color brightness and a wider color gamut. This projector was first available for purchase in March 2001 and has been by Epson. The Epson PowerLite 505c was also marketed as the A+K EMP 505.
Product Downloads
Helpful Links
Buy a Lamp
Get a Repair
Buy Local
Epson PowerLite 505c Projector Specifications
- MSRP
- $4,499
- White Brightness
- 1,100 ANSI Lumens
- Resolution
- 800x600
- Aspect Ratio
- 4:3 (SVGA)
- Contrast
- 400:1
- Display Type
- 0.90" 3LCD Chips
- Color Processing
- 8-bit
- Video Modes
- 720p, 1080i, 1080p/60, 480p, 480i
- Data Modes
- MAX 1280x1024
- Lamp Type
- 150W UHE bulb
- Lamp Life
- 1,000 hours
- Lamp Model
- ELPLP14 / V13H010L14 Buy Replacement Lamp
- Included Lens
- 1.2x manual zoom , manual focus
- Optional Lenses
- No
- Lens Shift
- No
- Throw Distance
- 8.9' - 37.6' Calculate Throw Distance
- Image Size
- 60.00" - 300.00"
- Throw Ratio
- 1.89:1 - 2.29:1
- Projector Placement
- For a diagonal screen, place the projector lens between 12'-5" and 15'-0" from the screen.
- Digital Zoom
- Yes
- Digital Keystone
- Vertical only
- Projector Size
- 3.40" x 8.40" x 10.50"
- Weight
- 6.0 lbs
- Audible Noise
- 42 dB
- Internal Speakers
- 1.0 Watts Mono
- Power
- 230 Watts 100V - 240V
- Features
-
Memory Card Reader
- Additional Features
- Integrated presentation software for use with PC Card Reader. Includes ability to electronically annotate the projected image.
