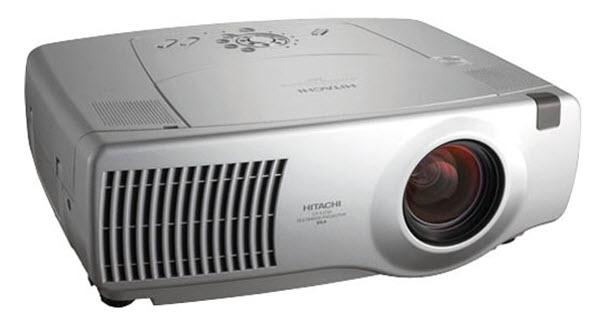

Hitachi CP-X1230 Projector

XGA Large Venue Projector
Calculate Throw Distance

The Hitachi CP-X1230 Projector is a XGA Large Venue Projector. This lamp based projector is capable of displaying 4,000 Lumens at its brightest setting with a native resolution of 1024x768 . The internal 3LCD technology is an innovative 3-chip design that sets itself apart by delivering vibrant, true-to-life images with better color brightness and a wider color gamut. This projector was first available for purchase in June 2005 and has been by Hitachi. The Hitachi CP-X1230 was also marketed as the Dukane ImagePro 8940.


Hitachi CP-X1230 Projector Specifications


MSRP
$10,995
User Reviews
Review this Projector
Status
Discontinued
Released
June 2005
Warranty
3 Years

Switch to Metric
White Brightness
4,000 ANSI Lumens
Resolution
1024x768
Aspect Ratio
4:3 (XGA)
Contrast
400:1
Display Type
0.99" 3LCD Chips
Color Processing
8-bit
Video Modes
720p, 1080i, 576i, 480p, 480i
Data Modes
MAX 1600x1200

Lamp Type
310W UHB bulb
Lamp Life
2,000 hours

Included Lens
1.5x Powered zoom , Powered focus
Optional Lenses
No
Lens Shift
No
Throw Distance
6.1' - 51.3'  Calculate Throw Distance
Image Size
40.00" - 500.00"
Throw Ratio
1.54:1 - 2.29:1
Projector Placement
For a
"
diagonal screen, place the projector lens between 10'-3" and 15'-3" from the screen.
Digital Zoom
No
Digital Keystone
Horizontal & Vertical

Projector Size
6.30" x 16.50" x 12.50"
Weight
15.2 lbs
Audible Noise
41 dB  / 37 dB
Internal Speakers
1.0 Watts × 2
Power
470 Watts 100V - 240V
Additional Features
The CP-X1230 model projector provides integrators a high end projector for the most challenging applications in large venues, as well as schools and universities, sophisticated business applications and houses of worship.
