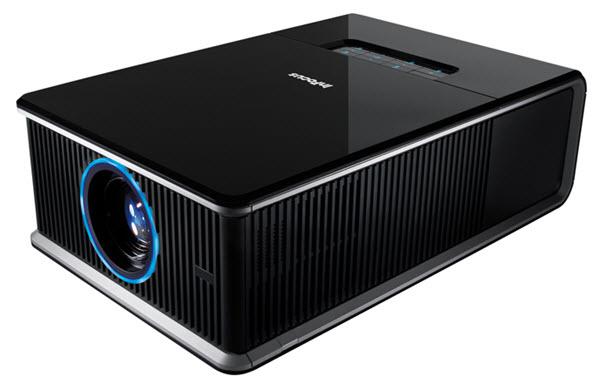

InFocus IN5534L Projector

WUXGA Large Venue Projector
Calculate Throw Distance

From InFocus —   The IN5534L DLP projector has the ultimate in native wide resolution at 1920 x 1200 dpi, so all your content will be displayed as it was meant to be seen, and big enough for everyone to see. It is versatile enough to install in most any auditorium, convention hall, church or other house of worship -- even when projecting over long distances or in high ambient light.

  • WUXGA (1920 x 1200) resolution
  • Up to 7000 lumens
  • 5 lens options (no lens included)
  • HDMI, VGA inputs and more
  • Dual lamps


InFocus IN5534L Projector Specifications


MSRP
$8,999
User Reviews
Review this Projector
Status
Discontinued
Released
October 2009
Warranty
5 Years

Switch to Metric
Brightness
7,000 ANSI Lumens / 5,500 Lumens
Resolution
1920x1200
Aspect Ratio
16:10 (WUXGA)
Contrast
2,000:1
Display Type
0.70" DLP x 1
Color Wheel
5 segments
Color Processing
10-bit
Video Modes
720p, 1080i, 1080p/60, 1080p/24, 1080p/30, 576i, 576p, 480p, 480i
Data Modes
MAX 1920x1200

Lamp Type
330W P-VIP bulb x 2
Lamp Life
2,000 hours  / 2,500 hours
Lamp Model
SP-LAMP-067B  Buy Replacement Lamp

Included Lens
No
Optional Lenses




LENS-050 Short Fixed 0.81:1
LENS-051 Short Zoom 1.21:1-1.45:1
LENS-052 Long Zoom 1.93:1-3.67:1
LENS-053 Ultra Long Zoom 3.67:1-6.97:1
Standard LENS-054 Zoom 1.45:1-1.93:1
Lens Shift
Horizontal & Vertical
Digital Zoom
Yes
Digital Keystone
Horizontal & Vertical

Projector Size
9.50" x 17.00" x 26.40"
Weight
44.1 lbs
Audible Noise
30 dB  / 29 dB
Internal Speakers
5.0 Watts × 2
Power
550 Watts 100V - 240V
Connection Panel
12-Volt Trigger
Audio Out: Mini Jack
Component
Composite: RCA
HDMI x 2
Network: RJ-45
RGB In: BNC
RS232: DB-9pin
S-Video
USB
VGA In: Dsub-15pin x 2

Features
Memory Card Reader
Case Color Options
Picture-in-Picture
2:3 Pulldown
Closed Captioning
Operate 24/7
Blackboard Mode
Additional Features
The built-in Dynamic Messaging System (DMS) gives both users and administrators the ability to broadcast instant messages such as school closings through onscreen display.
