Highlights

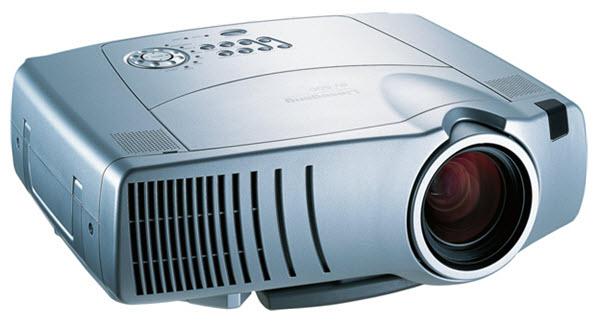

The Liesegang dv 500 Projector is a XGA Large Venue Projector. This lamp based projector is capable of displaying 3,500 Lumens at its brightest setting with a native resolution of 1024x768 . The internal 3LCD technology is an innovative 3-chip design that sets itself apart by delivering vibrant, true-to-life images with better color brightness and a wider color gamut. This projector was first available for purchase in November 2002 and has been by Liesegang. The Liesegang dv 500 projector was manufactured by Hitachi as the CP-X885W. This projector was also marketed as the 3M MP8790.

Product Downloads
Helpful Links
Liesegang dv 500 Projector Specifications
- MSRP
- $5,995
- White Brightness
- 3,500 ANSI Lumens / 2,800 Lumens
- Resolution
- 1024x768
- Aspect Ratio
- 4:3 (XGA)
- Contrast
- 800:1
- Display Type
- 1.00" 3LCD Chips
- Color Processing
- 8-bit
- Video Modes
- 720p, 1080i, 1080p/60, 1035i, 575i, 480p, 480i
- Data Modes
- MAX 1600x1200
- Lamp Type
- 275W UHB bulb
- Lamp Life
- 2,000 hours
- Included Lens
- 1.5x Powered zoom , Powered focus
- Optional Lenses
- Contact Liesegang for lens information.
- Lens Shift
- No
- Throw Distance
- 4.9' - 23.0' Calculate Throw Distance
- Image Size
- 32.66" - 229.66"
- Throw Ratio
- 1.50:1 - 2.26:1
- Digital Zoom
- Yes
- Digital Keystone
- Horizontal & Vertical
- Projector Size
- 4.70" x 15.40" x 11.40"
- Weight
- 12.6 lbs
- Audible Noise
- 39 dB / 35 dB
- Internal Speakers
- 1.0 Watts × 2
- Power
- 430 Watts 100V - 240V
- Features
-
Picture-in-Picture
- Additional Features
- An optionally available wireless module enables the dv 500 to be connected to a network and allows wireless transmission of the video signal to the projector.
