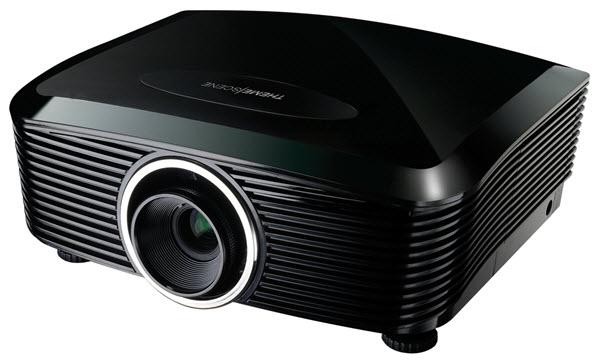

Optoma ThemeScene HD86 Projector

1080P Home Theater Projector
Calculate Throw Distance

From Optoma —   The HD86 offers a new level in performance. Exceptional ANSI contrast, full lens shift and ultra high performance optics with 3 lens options are combined with superlative signal processing featuring PureMotion2 frame interpolation and extensive CMS and colour gamut control. The HD86 is designed to satisfy the requirements of the most demanding home cinema enthusiast or simply those who require the finest possible image.

  • Full HD 1080P DLP picture quality
  • Full lens options and lens shift for ease of installation
  • 1500 ANSI lumens
  • Realistic measurable contrast performance: 700:1 ANSI contrast
  • Puremotion2 eliminating motion judder and blurring
  • Advanced DynamicBlack
  • 9 Steps Lens Iris
  • Full Color Management System
  • New display modes for reference and ambient lighting conditions
  • HDMI black level choices

Optoma ThemeScene HD86 Projector Specifications

October 2009
User Reviews
Review this Projector
Switch to Metric
1,600 ANSI Lumens
Aspect Ratio
16:9 (HD)
Dynamic Iris
Display Type
DLP x 1
Color Processing
Video Modes
720p, 1080i, 1080p/60, 1080p/24, 1080p/50, 480p, 480i
Data Modes
MAX 1920x1080

Lamp Type
280W P-VIP bulb
Lamp Life
2,000 hours
Lamp Model
5811116085-S  Buy Replacement Lamp

Included Lens
1.25x manual zoom , manual focus
Optional Lenses

BX-DL080 Fixed Lens Throw Ratio 0.77:1
BX-DL300 Zoom Lens Throw Ratio 1.93:1-2.89:1
Lens Shift
Horizontal +/-5% & Vertical +60% / -30%
Throw Distance
6.3' - 16.8'  Calculate Throw Distance
Image Size
45.00" - 150.00"
Throw Ratio
1.54:1 - 1.93:1
Digital Keystone
Vertical only

Projector Size
5.63" x 16.38" x 12.76"
17.6 lbs
Audible Noise
29 dB
220 Watts 110V - 220V
Connection Panel
12-Volt Trigger x 2
Component: RCA
Composite: RCA
HDMI 1.3 x 3
RS232: DB-9pin
VGA In: Dsub-15pin

Anamorphic Ready
