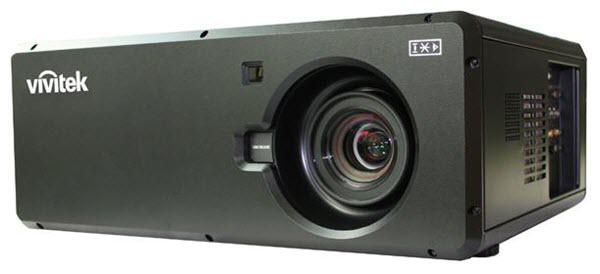

Vivitek D5500 Projector

XGA Large Venue Projector
Calculate Throw Distance

The Vivitek D5500 Projector is a XGA Large Venue Projector. This lamp based projector is capable of displaying 5,500 Lumens at its brightest setting with a native resolution of 1024x768 . The internal DLP technology touts higher contrast, less visible pixels and more portability. The unique projector lens has the ability to be shifted to allow greater flexibility in positioning the projector relative to the screen. This projector was first available for purchase in February 2009 and has been by Vivitek.



Vivitek D5500 Projector Specifications


MSRP
$5,999
Status
Discontinued
Released
February 2009
Warranty
3 Years
User Reviews
Review this Projector

Switch to Metric
Brightness
5,500 ANSI Lumens
Resolution
1024x768
Aspect Ratio
4:3 (XGA)
Contrast
2,500:1
Display Type
0.70" DLP x 1
Color Wheel
6 segments
Color Processing
8-bit
Video Modes
720p, 1080i, 576i, 576p, 480p, 480i
Data Modes
MAX 1280x1024

Lamp Type
260W Metal Halide bulb x 2
Lamp Life
2,000 hours  / 2,500 hours
Lamp Model
5811100560  Buy Replacement Lamp

Included Lens
1.3x Powered zoom , Powered focus
Optional Lenses



GB805G Short Fixed Lens Throw Ratio 0.77:1
GB942G Short Zoom Lens Throw Ratio 1.33:1-1.79:1
GB949G Long Zoom Lens Throw Ratio 2.22:1-4.43:1
GB957G Ultra Long Zoom Lens Throw Ratio 4.43:1-8.30:1
Lens Shift
Horizontal & Vertical
Throw Distance
6.2' - 60.6'  Calculate Throw Distance
Image Size
40.00" - 500.00"
Throw Ratio
1.82:1 - 2.40:1
Digital Keystone
Horizontal & Vertical

Projector Size
7.60" x 19.90" x 15.20"
Weight
45.1 lbs
Audible Noise
35 dB  / 32 dB
Internal Speakers
3.0 Watts × 2
Power
655 Watts 110V - 240V
Connection Panel
12-Volt Trigger
Audio Out: Mini Jack x 2
Composite: RCA
DVI Digital Input
Network: RJ-45
RGB In: BNC
RS232: DB-9pin
S-Video
USB
VGA In: Dsub-15pin

Features
2:3 Pulldown
2:2 Pulldown
Laser Pointer
Additional Features
4 segment color wheel option
