Highlights

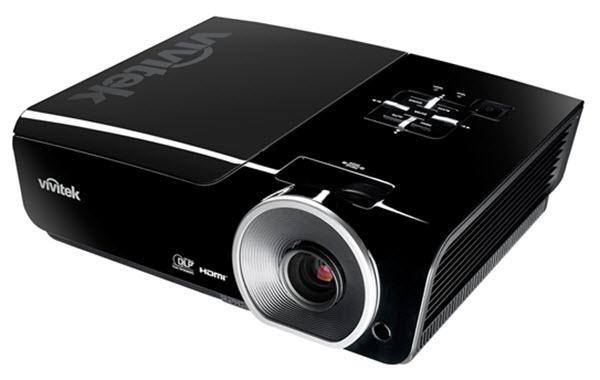

The Vivitek H1085 Projector is a 1080P Home Theater Projector. This lamp based projector is capable of displaying 2,000 Lumens at its brightest setting with a native resolution of 1920x1080 . The internal DLP technology touts higher contrast, less visible pixels and more portability. This projector is not being produced by Vivitek any longer and was .

Product Downloads
Helpful Links


Vivitek H1085 Projector Specifications
- Brightness
- 2,000 ANSI Lumens
- Resolution
- 1920x1080
- Aspect Ratio
- 16:9 (HD)
- Contrast
- 5,000:1
- Display Type
- 0.65" DLP x 1
- Color Processing
- 10-bit
- Video Modes
- 720p, 1080i, 1080p/60, 576i, 576p, 480p, 480i
- Data Modes
- MAX 1920x1080
- Lamp Type
- 230W UHP bulb
- Lamp Life
- 2,000 hours / 3,000 hours
- Lamp Model
- 5811116206 Buy Replacement Lamp
- Included Lens
- 1.2x manual zoom , manual focus
- Optional Lenses
- No
- Lens Shift
- No
- Throw Distance
- 3.5' - 32.0' Calculate Throw Distance
- Image Size
- 25.10" - 275.36"
- Throw Ratio
- 1.60:1 - 1.92:1
- Projector Placement
- For a diagonal screen, place the projector lens between 11'-7" and 13'-11" from the screen.
- Digital Keystone
- Vertical only
- Projector Size
- 4.50" x 13.20" x 10.00"
- Weight
- 8.1 lbs
- Audible Noise
- 32 dB / 26 dB
- Internal Speakers
- 5.0 Watts Mono
- Power
- 240 Watts 100V - 240V
- Connection Panel
-
12-Volt TriggerAudio Out: Mini JackComponentComposite: RCAHDMI 1.3 x 2RS232: DB-9pinS-VideoUSBVGA In: Dsub-15pin
- Additional Features
- With 2000 lumens and a 5000:1 contrast, the H1085 delivers dazzling digital images with full color saturation for high-impact picture quality.
