Calculate Throw Distance
Highlights
Calculate Throw Distance

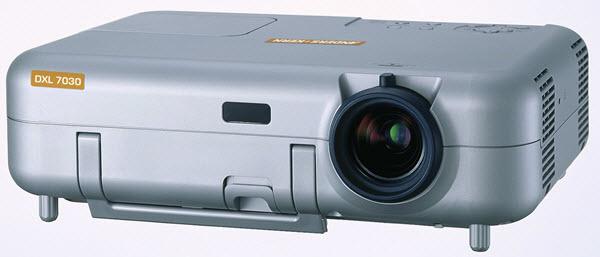

The A+K DXL 7030 Projector is a XGA Conference Room Projector. This lamp based projector is capable of displaying 3,000 Lumens at its brightest setting with a native resolution of 1024x768 . The internal 3LCD technology is a 3-chip design that delivers good color brightness and a wide color gamut. This projector was first available for purchase in June 2005 and has been by A+K. The A+K DXL 7030 projector was manufactured by NEC as the VT770. This projector was also marketed as the Dukane ImagePro 8768.
Product Downloads
Helpful Links
Buy a Lamp
Get a Repair
Get a Screen
Buy LocalA+K DXL 7030 Projector Specifications
- White Brightness
- 3,000 Lumens (ANSI)1 / 2,300 Lumens
- Resolution
- 1024x768
- Aspect Ratio
- 4:3 (XGA)
- Contrast
- 400:1
- Display Type
- 0.80" 3LCD
- Color Processing
- 8-bit
- Video Modes
- 720p, 1080i, 480p, 480i
- Data Modes
- MAX 1600x1200
- Light Source
- 200W UHP bulb
- Light Source Life
- 2,000 hours / 3,000 hours
- Lamp Model
- 456-8768 Buy 456-8768 Lamp
- Included Lens
- 1.2x manual zoom , manual focus
- Optional Lenses
- Contact A+K for lens information.
- Lens Shift
- No
- Throw Distance
- 8.5' - 29.7' Calculate Throw Distance
- Image Size
- 72.00" - 300.00"
- Throw Ratio
- 1.49:1 - 1.81:1
- Digital Keystone
- Horizontal & Vertical
- Projector Size
- 4.20" x 13.40" x 10.20"
- Weight
- 7.9 lbs
- Audible Noise
- 35 dB / 30 dB
- Internal Speakers
- 5.0 Watts × 2
- Power
- 280 Watts 100V - 240V
- Connection Panel
-
