Calculate Throw Distance
Highlights
Calculate Throw Distance

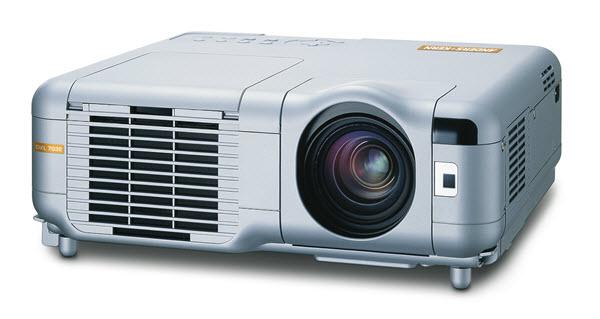

The A+K DXL 7032 Projector is a XGA Conference Room Projector. This lamp based projector is capable of displaying 3,200 Lumens at its brightest setting with a native resolution of 1024x768 . The internal 3LCD technology is a 3-chip design that delivers good color brightness and a wide color gamut. This projector was first available for purchase in June 2005 and has been by A+K. The A+K DXL 7032 projector was manufactured by NEC as the MT1065. This projector was also marketed as the Dukane ImagePro 8805.
Product Downloads
Helpful Links
Buy a Lamp
Get a Repair
Get a Screen
Buy LocalA+K DXL 7032 Projector Specifications
- White Brightness
- 3,200 Lumens (ANSI)1 / 2,600 Lumens
- Resolution
- 1024x768
- Aspect Ratio
- 4:3 (XGA)
- Contrast
- 800:1
- Display Type
- 1.00" 3LCD
- Color Processing
- 8-bit
- Video Modes
- 720p, 1080i, 480p, 480i
- Data Modes
- MAX 1600x1200
- Light Source
- 275W NSH bulb
- Light Source Life
- 2,000 hours / 3,000 hours
- Lamp Model
- 456-8805 Buy 456-8805 Lamp
- Included Lens
- 1.35x Powered zoom , Powered focus
- Optional Lenses
- No
- Lens Shift
- No
- Throw Distance
- 9.8' - 35.8' Calculate Throw Distance
- Image Size
- 72.00" - 350.00"
- Throw Ratio
- 1.55:1 - 2.08:1
- Projector Placement
- For a diagonal screen, place the projector lens between 10'-2" and 13'-8" from the screen.
- Digital Zoom
- Yes
- Digital Keystone
- Horizontal & Vertical
- Projector Size
- 4.50" x 13.20" x 12.70"
- Weight
- 13.0 lbs
- Audible Noise
- 39 dB / 34 dB
- Internal Speakers
- 5.0 Watts × 2
- Power
- 390 Watts 100V - 240V
- Connection Panel
-
Wireless Networking
- Additional Features
- When it comes to fixed installations for large-scale events, the DXL 7032 is your best bet for first class presentations, thanks to its wide range of connections and network options.
