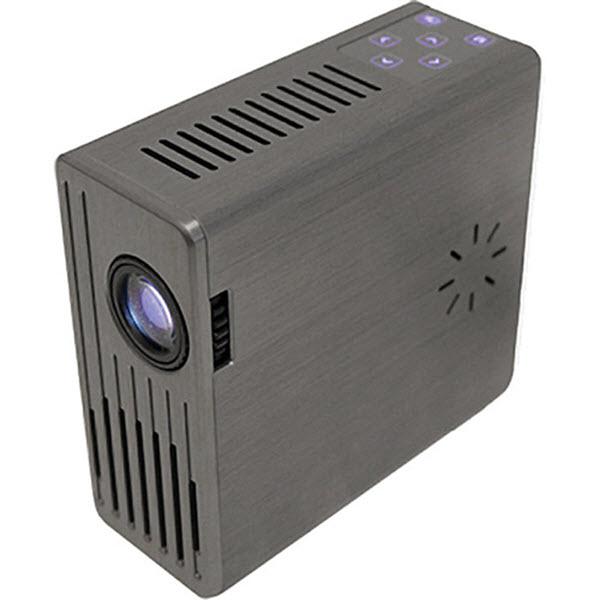

The AAXA M1 Ultimate Projector is a SVGA Pico Projector. This LED projector is capable of displaying 75 Lumens at its brightest setting with a native resolution of 800x600 . Weighing in at 1.0 lbs, this mini pocket-sized projector is perfect for impromptu business meetings and personal movie viewing on the go. This projector was first available for purchase in July 2010 and has been by AAXA Technologies.
Product Downloads
Helpful Links
Get a Repair
Get a Screen
Buy LocalAAXA M1 Ultimate Projector Specifications
- Brightness
- 75 Lumens (ANSI)1
- Resolution
- 800x600
- Aspect Ratio
- 4:3 (SVGA)
- Contrast
- 1,000:1
- Display Type
- LCoS x 1
- Color Processing
- 8-bit
- Video Modes
- No
- Data Modes
- MAX 1280x720
- Light Source
- LED
- Light Source Life
- 15,000 hours
- Included Lens
- Fixed focal length , manual focus
- Optional Lenses
- No
- Lens Shift
- No
- Throw Distance
- 4.1' - 13.7' Calculate Throw Distance
- Image Size
- 30.00" - 100.00"
- Throw Ratio
- 2.05:1
- Projector Placement
- For a diagonal screen, place the projector lens 13'-8" from the screen.
- Digital Zoom
- No
- Digital Keystone
- No
- Projector Size
- 4.40" x 1.80" x 4.13"
- Weight
- 1.0 lbs
- Audible Noise
- 20 dB
- Internal Speakers
- 1.0 Watts × 2
- Power
- 30 Watts 100V - 240V
- Battery Life
- 1 Hours
- Connection Panel
-
Audio Out: Mini JackComposite: RCAMemoryCardUSBVGA In: Dsub-15pin
- Features
-
Memory Card ReaderTripod
- Additional Features
- Optional battery available.
