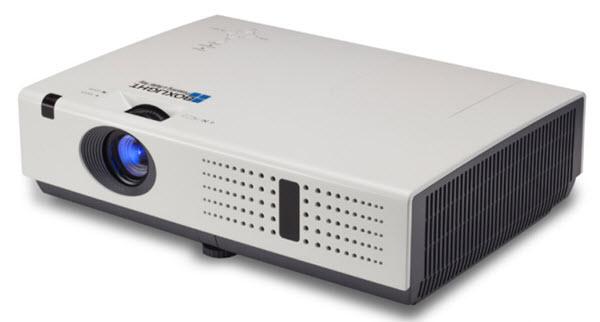

The Boxlight Eco X30N Projector is a XGA Conference Room Projector. This lamp based projector is capable of displaying 3,000 Lumens at its brightest setting with a native resolution of 1024x768 . The internal 3LCD technology is a 3-chip design that delivers good color brightness and a wide color gamut. This projector was first available for purchase in February 2014 and has been by Boxlight.
Product Downloads
Helpful Links
Buy a Lamp
Get a Repair
Get a Screen
Buy LocalBoxlight Eco X30N Projector Specifications
- MSRP
- n/a
- White Brightness
- 3,000 Lumens (ANSI)1 / 2,100 Lumens
- Resolution
- 1024x768
- Aspect Ratio
- 4:3 (XGA)
- Contrast
- 4,000:1
- Dynamic Iris
- Yes
- Display Type
- 0.63" 3LCD
- Color Processing
- 8-bit
- Video Modes
- 720p, 1080i, 1035i, 576i, 576p, 480p, 480i
- Data Modes
- MAX 1600x1200
- Light Source
- 230W NSH bulb
- Light Source Life
- 4,000 hours / 6,000 hours
- Lamp Model
- ECO-930 Buy ECO-930 Lamp
- Included Lens
- 1.2x manual zoom , manual focus
- Optional Lenses
- No
- Lens Shift
- No
- Throw Distance
- 4.0' - 30.0' Calculate Throw Distance
- Image Size
- 34.68" - 310.34"
- Throw Ratio
- 1.45:1 - 1.73:1
- Digital Zoom
- Yes
- Digital Keystone
- Vertical only
- Projector Size
- 3.40" x 12.90" x 9.50"
- Weight
- 6.4 lbs
- Audible Noise
- 36 dB / 32 dB
- Internal Speakers
- 7.0 Watts Mono
- Power
- 280 Watts 100V - 240V
- Connection Panel
-
Audio In: Mini JackAudio In: RCAAudio Out: Mini JackComponentComposite: RCAHDMINetwork: RJ-45RS232: DB-9pinS-VideoVGA In: Dsub-15pin x 2VGA Out: Dsub-15pin
- Features
-
Closed Captioning
- Additional Features
- Eco standard projector series for non-interactive applications
