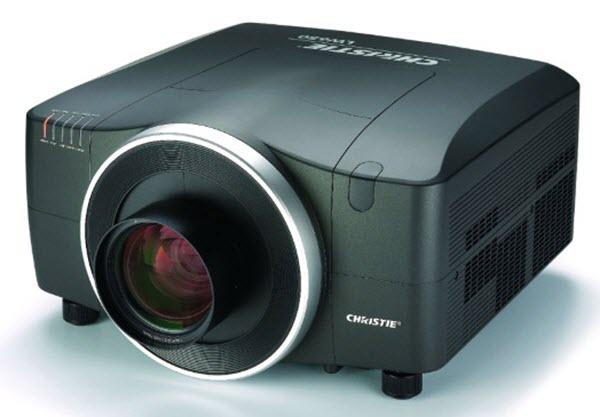

Christie LW720 Projector front view
Christie LW720 Projector front view

Christie LW720 Projector

WXGA Large Venue Projector
Highlights Specifications
Highlights Specifications

Highlights

The Christie LW720 Projector is a WXGA Large Venue Projector. This lamp based projector is capable of displaying 7,200 Lumens at its brightest setting with a native resolution of 1366x800 . The internal 3LCD technology is a 3-chip design that delivers good color brightness and a wide color gamut. The unique projector lens has the ability to be shifted to allow greater flexibility in positioning the projector relative to the screen. This projector was first available for purchase in March 2013 and has been by Christie.

Product Downloads

Product Sheet
User Manual

Helpful Links

Buy a Lamp Get a Repair Get a Screen Buy Local
BenQ TH671ST
1080P Home Theater Projector
BenQ TH671ST
1080P Home Theater Projector

Christie LW720 Projector Specifications

MSRP
n/a
Status
Discontinued
Released
March 2013
Warranty
3 Years
User Reviews
Review this Projector

Switch to Metric
White Brightness
7,200 Lumens (ANSI)1
Resolution
1366x800
Aspect Ratio
16:9 (WXGA)
Contrast
2,500:1
Display Type
3LCD
Color Processing
8-bit
Video Modes
720p, 1080i, 1080p/60, 1080p/50, 525i, 525p, 576i, 625i, 1125i, 480p, 480i
Data Modes
MAX 1600x1200
Light Source
350W UHB bulb
Light Source Life
3,000 hours  / 4,000 hours
Lamp Model
003-120483-01  Buy 003-120483-01 Lamp
Included Lens
No
Optional Lenses
Contact Christie for lens information.
Lens Shift
Horizontal & Vertical
Digital Keystone
Horizontal & Vertical
Projector Size
10.70" x 18.70" x 18.50"
Weight
29.1 lbs
Audible Noise
42 dB  / 34 dB
Internal Speakers
No
Power
540 Watts 110V - 240V
Connection Panel
Component: RCA
Composite: RCA
Composite: BNC
DVI Digital Input
HDMI
Network: RJ-45
RGB In: BNC
RS232: DB-9pin
S-Video
VGA In: Dsub-15pin x 3
Features
Picture-in-Picture
Closed Captioning
Blackboard Mode
Additional Features
With up to 6 optional lenses, including an ultra short throw, the Christie LW720 gives you choice in where you can fit your images. The Lens Memory* feature allows you to lock in up to three lens positions, including lens shift, focus, and zoom settings for quick recall.

1 "Lumens (ANSI)" measured in accordance with ANSI IT7.228
