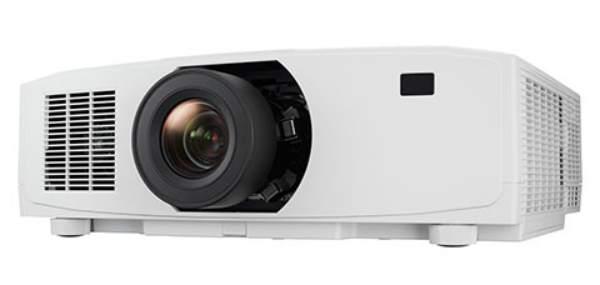

Dukane ImagePro 6771UL-L Projector

WUXGA Large Venue Projector

Highlights Specifications Compare to Competition Similar Projectors

+ Add to Compare List

Calculate Throw Distance

Highlights

Calculate Throw Distance

From Dukane — The Dukane ImagePro 6771UL-L is a powerful installation projector. The laser phosphor light source makes it perfect for all-new applications. With 4K UHD resolution, consistent brightness, improved color fidelity, and tilt-free or portrait modes, these projectors will deliver in verticals such as retail, simulation, and theme park installations. The laser module delivers 20,000 hours of virtually maintenance-free operations, reducing your total cost of ownership.

3,000,000:1 dynamic contrast ratio
Integrated software applications such as AMX Beacon, Crestron RoomView, Extron XTP, and PJ Link
Built-in daisy chain capabilities support multi-display applications
Filter-free LCD projector
Sealed LCD cooling system

Product Downloads

Product Sheet

Helpful Links

Get an E-Z Quote

Get a Repair

Get a Screen

Buy Local

Panasonic PT-RQ35KU

WUXGA Large Venue Laser Projector

Panasonic PT-RQ35KU

WUXGA Large Venue Projector

Dukane ImagePro 6771UL-L Projector Specifications

Street Price: $4,971 (USD)

MSRP: $11,650 (USD)

Best Used For

Higher Education
House of Worship
Corporate/Business
Digital Signage
Museum/Exhibits

Status: Shipping

Released: October 2023

Warranty: 5 Years

User Reviews: Review this Projector

Switch to Metric

White Brightness
7,100 Lumens (ISO)²

Resolution
1920x1200

Aspect Ratio
16:10 (WUXGA)

Display Type
0.76" 3LCD

Color Processing
8-bit

Video Modes
720p, 1080i, 1080p/60, 576i, 576p, 480p, 480i

Data Modes
MAX 4096x2160

3D Modes
Full HD 3D

Light Source
Laser Phosphor

Light Source Life
20,000 hours

Included Lens
2.02x manual zoom , manual focus

Optional Lenses
NP11FL Fixed Lens Throw Ratio 0.79:1 NP12ZL Zoom Lens Throw Ratio 1.16:1-1.52:1 NP14ZL Zoom Lens Throw Ratio 2.90:1-4.64:1 NP15ZL Zoom Lens Throw Ratio 4.59:1-7.02:1 NP40ZL Short Zoom Lens Throw Ratio 0.79:1-1.11:1 NP41ZL Zoom Lens Throw Ratio 1.30:1-3.02:1 NP43ZL Zoom Lens Throw Ratio 2.99:1-5.93:1 NP44ML-02LK Fixed Lens Throw Ratio 0.32:1

Lens Shift
Horizontal +/-30% & Vertical +50% / -10%

Throw Distance
6.2' - 31.0' Calculate Throw Distance

Image Size
29.74" - 300.37"

Throw Ratio
1.46:1 - 2.95:1 (D:W)

Digital Zoom
Yes

Digital Keystone
Horizontal & Vertical

Projector Size
8.50" x 23.60" x 19.30" (HxWxD)

Weight
53.1 lbs

Audible Noise
40 dB / 31 dB (Eco)

Internal Speakers
No

Power
456 Watts 100V - 240V

Connection Panel
Audio In: Mini Jack Audio Out: Mini Jack DisplayPort HDBaseT: RJ-45 HDMI 2.0 (HDCP 2.2) x 2 Network: RJ-45 RS232: DB-9pin USB VGA In: Dsub-15pin
