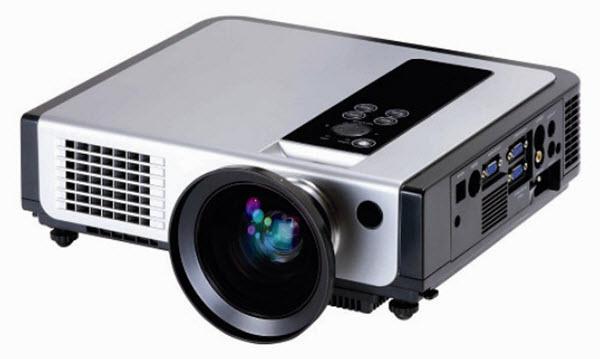

The Everest ED-U63W Projector is a XGA Conference Room Projector. This lamp based projector is capable of displaying 2,500 Lumens at its brightest setting with a native resolution of 1024x768 . The internal 3LCD technology is a 3-chip design that delivers good color brightness and a wide color gamut. This projector was first available for purchase in July 2007 and has been by Everest. The Everest ED-U63W was also marketed as the Dukane ImagePro 8763.
Helpful Links
Buy a Lamp
Get a Repair
Get a Screen
Buy LocalEverest ED-U63W Projector Specifications
- White Brightness
- 2,500 Lumens (ANSI)1
- Resolution
- 1024x768
- Aspect Ratio
- 4:3 (XGA)
- Contrast
- 500:1
- Display Type
- 0.63" 3LCD
- Color Processing
- 8-bit
- Video Modes
- 720p, 1080i, 576i, 576p, 480p, 480i
- Data Modes
- MAX 1280x1024
- Light Source
- 200W NSH bulb
- Light Source Life
- 2,000 hours / 3,000 hours
- Included Lens
- 1.2x manual zoom , manual focus
- Optional Lenses
- No
- Lens Shift
- No
- Throw Distance
- 4.0' - 20.0' Calculate Throw Distance
- Image Size
- 50.00" - 300.00"
- Throw Ratio
- 1.01:1 - 1.20:1
- Digital Keystone
- Vertical only
- Projector Size
- 4.60" x 13.00" x 10.60"
- Weight
- 7.3 lbs
- Internal Speakers
- 2.0 Watts Mono
- Power
- 250 Watts 100V - 240V
- Connection Panel
-
Audio Out: Mini JackComposite: RCARS232: DB-9pinS-VideoUSBVGA In: Dsub-15pin x 2
- Features
-
Short-Throw
- Additional Features
- Extra short throw lens
