Calculate Throw Distance

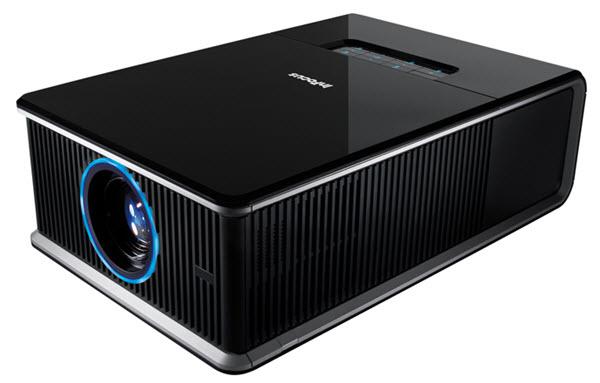

The InFocus IN5504L Projector is a WUXGA Large Venue Projector. This lamp based projector is capable of displaying 5,000 Lumens at its brightest setting with a native resolution of 1920x1200 . The internal DLP technology touts higher contrast, less visible pixels and more portability. The unique projector lens has the ability to be shifted to allow greater flexibility in positioning the projector relative to the screen. This projector was first available for purchase in October 2009 and has been by InFocus.
Product Downloads
Helpful Links
Buy a Lamp
Get a Repair
Get a Screen
Buy Local
Panasonic PT-RQ35KU
WUXGA Large Venue Laser
Projector
Panasonic PT-RQ35KU
WUXGA Large Venue
Projector
InFocus IN5504L Projector Specifications
- MSRP
- n/a
- Brightness
- 5,000 Lumens (ANSI)1 / 4,000 Lumens
- Resolution
- 1920x1200
- Aspect Ratio
- 16:10 (WUXGA)
- Contrast
- 2,000:1
- Display Type
- 0.70" DLP x 1
- Color Wheel
- 5 segments
- Color Processing
- 10-bit
- Video Modes
- 720p, 1080i, 1080p/60, 1080p/24, 1080p/30, 576i, 576p, 480p, 480i
- Data Modes
- MAX 1920x1200
- Light Source
- 330W P-VIP bulb
- Light Source Life
- 2,000 hours / 2,500 hours
- Lamp Model
- SP-LAMP-055 Buy SP-LAMP-055 Lamp
- Included Lens
- No
- Optional Lenses
-
LENS-050 Short Fixed Lens Throw Ratio 0.77:1LENS-051 Short Zoom Lens Throw Ratio 1.21:1-1.45:1LENS-052 Long Zoom Lens Throw Ratio 1.93:1-3.67:1LENS-053 Ultra Long Zoom Lens Throw Ratio 3.67:1-6.97:1LENS-054 Zoom Lens Throw Ratio 1.45:1-1.93:1
- Lens Shift
- Horizontal & Vertical
- Digital Keystone
- Horizontal & Vertical
- Projector Size
- 9.50" x 17.00" x 26.40"
- Audible Noise
- 30 dB / 29 dB
- Internal Speakers
- 5.0 Watts × 2
- Power
- 480 Watts 100V - 240V
- Connection Panel
-
12-Volt TriggerAudio Out: Mini JackComponentComposite: RCAHDMI x 2Network: RJ-45RGB In: BNC x 2RS232: DB-9pinS-VideoUSBVGA In: Dsub-15pin
- Features
-
Memory Card ReaderCase Color OptionsPicture-in-Picture2:3 PulldownClosed CaptioningOperate 24/7Blackboard Mode
- Additional Features
- The built-in Dynamic Messaging System (DMS) gives both users and administrators the ability to broadcast instant messages such as school closings through onscreen display.
