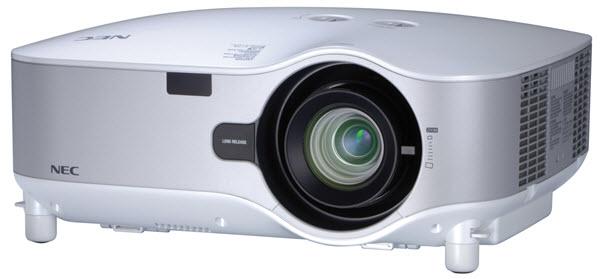

The NEC NP3151W Projector is a WXGA Conference Room Projector. This lamp based projector is capable of displaying 4,000 Lumens at its brightest setting with a native resolution of 1280x800 . The internal 3LCD technology is a 3-chip design that delivers good color brightness and a wide color gamut. The unique projector lens has the ability to be shifted to allow greater flexibility in positioning the projector relative to the screen. This projector was first available for purchase in April 2008 and has been by NEC.
Product Downloads
Helpful Links
Buy a Lamp
Get a Repair
Get a Screen
Buy LocalNEC NP3151W Projector Specifications
- MSRP
- $4,499
- White Brightness
- 4,000 Lumens (ANSI)1
- Resolution
- 1280x800
- Aspect Ratio
- 16:10 (WXGA)
- Contrast
- 500:1
- Display Type
- 0.74" 3LCD
- Color Processing
- 8-bit
- Video Modes
- 720p, 1080i, 576i, 576p, 480p, 480i
- Data Modes
- MAX 1600x1200
- Light Source
- 330W Metal Halide bulb
- Light Source Life
- 2,000 hours / 3,000 hours
- Lamp Model
- 60002234 Buy 60002234 Lamp
- Included Lens
- 1.33x manual zoom , manual focus
- Optional Lenses
-
NP01FL Fixed Lens Throw Ratio 0.83:1
- Lens Shift
- Horizontal +/-10% & Vertical +0.00% / -50%
- Throw Distance
- 5.6' - 54.0' Calculate Throw Distance
- Image Size
- 40.00" - 500.00"
- Throw Ratio
- 1.53:1 - 2.04:1
- Digital Keystone
- No
- Projector Size
- 5.90" x 15.70" x 14.10"
- Weight
- 16.1 lbs
- Audible Noise
- 38 dB / 31 dB
- Internal Speakers
- No
- Power
- 490 Watts 100V - 240V
- Connection Panel
-
ComponentComposite: RCADVI Digital InputNetwork: RJ-45RGB In: BNCRS232: DB-9pinS-VideoUSBVGA In: Dsub-15pinWireless Networking
- Features
-
Picture-in-Picture
- Additional Features
- Remote desktop connection allows the projector to connect to a networked computer remotely. Silicon Optix HQV™ technology produces superior video processing
