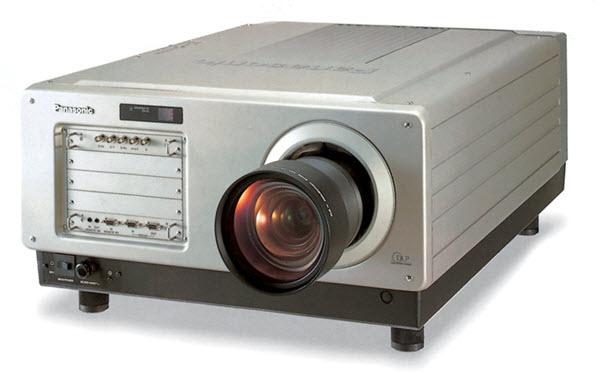

Panasonic PT-D8600U Projector front view
Panasonic PT-D8600U Projector front view

Panasonic PT-D8600U Projector

SXGA Large Venue Projector
Highlights Specifications
Highlights Specifications

Highlights

The Panasonic PT-D8600U Projector is a SXGA Large Venue Projector. This lamp based projector is capable of displaying 7,000 Lumens at its brightest setting with a native resolution of 1280x1024 . The internal DLP technology touts higher contrast, less visible pixels and more portability. The unique projector lens has the ability to be shifted to allow greater flexibility in positioning the projector relative to the screen. This projector was first available for purchase in October 2002 and has been by Panasonic.

Helpful Links

Buy a Lamp Get a Repair Get a Screen Buy Local
Panasonic PT-RQ35KU
WUXGA Large Venue Laser Projector
Panasonic PT-RQ35KU
WUXGA Large Venue Projector

Panasonic PT-D8600U Projector Specifications

MSRP
$87,500
Status
Discontinued
Released
October 2002
Warranty
1 Year
User Reviews
Review this Projector

Switch to Metric
Brightness
7,000 Lumens (ANSI)1
Resolution
1280x1024
Aspect Ratio
5:4 (SXGA)
Contrast
450:1
Display Type
0.90" DLP x 3
Color Processing
8-bit
Video Modes
720p, 1080i, 1080p/60, 480p, 480i
Data Modes
MAX 1600x1200
Light Source
1,200W Xenon bulb
Light Source Life
1,500 hours
Included Lens
No
Optional Lenses
Contact Panasonic for lens information.
Lens Shift
Horizontal & Vertical
Digital Zoom
Yes
Digital Keystone
Vertical only
Projector Size
15.34" x 26.75" x 38.31"
Weight
176.4 lbs
Internal Speakers
No
Power
1,900 Watts 200V - 240V
Additional Features
Optional SDI Digital Input Board, optional lens

1 "Lumens (ANSI)" measured in accordance with ANSI IT7.228
