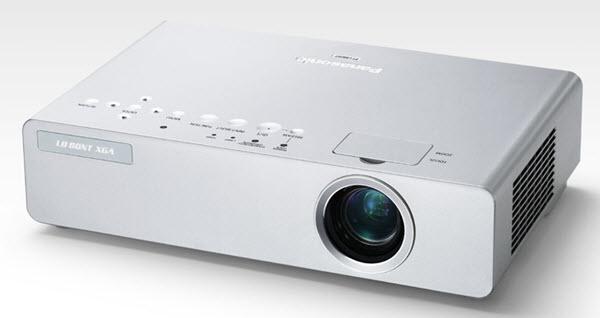

The Panasonic Europe PT-LB80NTEA Projector is a XGA Conference Room Projector. This lamp based projector is capable of displaying 3,200 Lumens at its brightest setting with a native resolution of 1024x768 . The internal 3LCD technology is a 3-chip design that delivers good color brightness and a wide color gamut. This projector was first available for purchase in May 2008 and has been by Panasonic Europe.
Product Downloads
Helpful Links
Buy a Lamp
Get a Repair
Get a Screen
Buy LocalPanasonic Europe PT-LB80NTEA Projector Specifications
- White Brightness
- 3,200 Lumens (ANSI)1
- Resolution
- 1024x768
- Aspect Ratio
- 4:3 (XGA)
- Contrast
- 500:1
- Display Type
- 0.63" 3LCD
- Color Processing
- 8-bit
- Video Modes
- 720p, 1080i, 576i, 576p, 480p, 480i
- Data Modes
- MAX 1024x768
- Light Source
- 220W UHM bulb
- Included Lens
- 1.2x manual zoom , manual focus
- Optional Lenses
- No
- Lens Shift
- No
- Throw Distance
- 4.5' - 29.0' Calculate Throw Distance
- Image Size
- 39.00" - 300.00"
- Throw Ratio
- 1.45:1 - 1.76:1
- Projector Placement
- For a diagonal screen, place the projector lens between 9'-8" and 11'-8" from the screen.
- Digital Zoom
- Yes
- Digital Keystone
- Vertical only
- Projector Size
- 3.47" x 14.50" x 9.20"
- Weight
- 6.5 lbs
- Internal Speakers
- 1.0 Watts Mono
- Power
- 300 Watts 100V - 240V
- Connection Panel
-
Composite: RCARS232: DB-9pinS-VideoVGA In: Dsub-15pin x 2Wireless Networking
- Features
-
Soft Carrying Case
