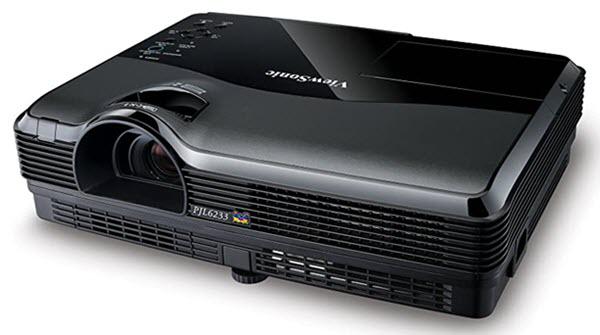

ViewSonic PJL6233 Projector front view
ViewSonic PJL6233 Projector front view

ViewSonic PJL6233 Projector

XGA Conference Room Projector
Highlights Specifications
Highlights Specifications
Calculate Throw Distance

Highlights

Calculate Throw Distance

The ViewSonic PJL6233 Projector is a XGA Conference Room Projector. This lamp based projector is capable of displaying 2,600 Lumens at its brightest setting with a native resolution of 1024x768 . The internal 3LCD technology is a 3-chip design that delivers good color brightness and a wide color gamut. This projector was first available for purchase in June 2011 and has been by ViewSonic.

Product Downloads

Product Sheet
User Manual

Helpful Links

Buy a Lamp Get a Repair Get a Screen Buy Local

ViewSonic PJL6233 Projector Specifications

MSRP
$519
Status
Discontinued
Released
June 2011
Warranty
3 Years
User Reviews
Review this Projector

Switch to Metric
White Brightness
2,600 Lumens (ANSI)1
Resolution
1024x768
Aspect Ratio
4:3 (XGA)
Contrast
900:1
Display Type
0.63" 3LCD
Color Processing
8-bit
Video Modes
720p, 1080i, 576i, 576p, 480p, 480i
Data Modes
MAX 1600x1200
Light Source
215W Metal Halide bulb
Light Source Life
4,000 hours  / 6,000 hours
Lamp Model
RLC-065  Buy RLC-065 Lamp
Included Lens
1.2x manual zoom , manual focus
Optional Lenses
No
Lens Shift
No
Throw Distance
5.0' - 32.4'  Calculate Throw Distance
Image Size
39.06" - 300.00"
Throw Ratio
1.62:1 - 1.92:1
Digital Keystone
Vertical only
Projector Size
4.20" x 13.40" x 9.90"
Weight
5.7 lbs
Audible Noise
34 dB  / 29 dB
Internal Speakers
1.0 Watts Mono
Power
284 Watts 100V - 240V
Connection Panel
Composite: RCA
Network: RJ-45
RS232: DB-9pin
VGA In: Dsub-15pin x 2
Features
Closed Captioning
Blackboard Mode
Additional Features
There are 7 default picture modes: standard, real, dynamic, blackboard, color board (red/blue/yellow/green) modes to choose from depending on the user’s projected screen.

1 "Lumens (ANSI)" measured in accordance with ANSI IT7.228
