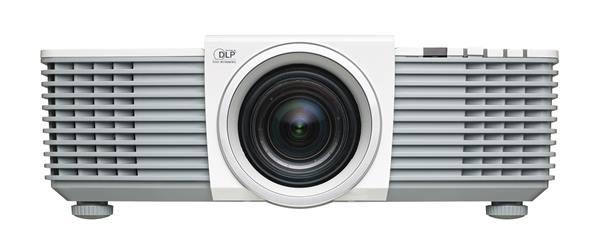

The Vivitek DX3350 Projector is a XGA Conference Room Projector. This lamp based projector is capable of displaying 6,000 Lumens at its brightest setting with a native resolution of 1024x768 , and is 3D capable. The internal DLP technology touts higher contrast, less visible pixels and more portability. The unique projector lens has the ability to be shifted to allow greater flexibility in positioning the projector relative to the screen. This projector was first available for purchase in August 2016 and has been by Vivitek.
Product Downloads
Helpful Links
Buy a Lamp
Get a Repair
Get a Screen
Buy LocalVivitek DX3350 Projector Specifications
- MSRP
- n/a
- Brightness
- 6,000 Lumens (ANSI)1
- Resolution
- 1024x768
- Aspect Ratio
- 4:3 (XGA)
- Contrast
- 10,000:1
- Display Type
- 0.65" DLP x 1
- Color Processing
- 10-bit
- Video Modes
- 720p, 1080i, 1080p/60, 576i, 576p, 480p, 480i
- Data Modes
- MAX 1920x1200
- 3D Modes
- PC 3D Ready
- Light Source
- 370W Metal Halide bulb
- Light Source Life
- 1,500 hours / 4,500 hours
- Lamp Model
- 5811119760-SVV Buy 5811119760-SVV Lamp
- Included Lens
- 1.7x manual zoom , manual focus
- Optional Lenses
- No
- Lens Shift
- Horizontal & Vertical
- Throw Distance
- 3.3' - 32.8' Calculate Throw Distance
- Image Size
- 22.06" - 378.46"
- Throw Ratio
- 1.30:1 - 2.21:1
- Projector Placement
- For a diagonal screen, place the projector lens between 8'-8" and 14'-9" from the screen.
- Digital Zoom
- Yes
- Digital Keystone
- Horizontal & Vertical
- Projector Size
- 6.30" x 17.50" x 12.90"
- Weight
- 18.5 lbs
- Audible Noise
- 36 dB / 30 dB
- Internal Speakers
- 7.0 Watts × 2
- Power
- 480 Watts 100V - 240V
- Connection Panel
-
12-Volt TriggerAudio In: Mini Jack x 2Audio In: RCAAudio Out: RCAAudio Out: Mini JackComposite: RCADVI Digital InputHDMI (MHL)HDMI 1.4Network: RJ-45RGB In: BNCRS232: DB-9pinS-VideoUSBVGA In: Dsub-15pin x 2VGA Out: Dsub-15pin
- Features
-
PC 3D ReadyClosed CaptioningDICOMGeometric CorrectionLaser PointerCrestron RoomView™
- Additional Features
- MHL device compatibility for streaming of video and audio content from a compatible mobile device
