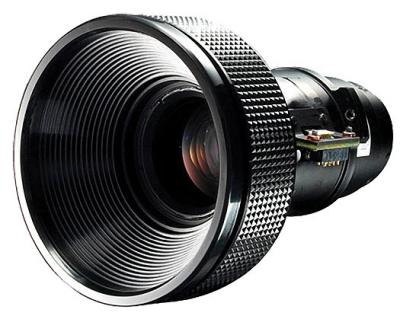

Vivitek LNS-5SZ1 Standard Zoom Lens
Lens ID: LNS-5SZ1
The Vivitek LNS-5SZ1 Standard Zoom Lens fits these following Vivitek projectors. The aperture range of this projection lens is f/2.46 to f/2.56. The lens weighs 0.9 lbs and is 5.10" long.
Compatible Projectors
Below is a list of projectors that work with the Vivitek LNS-5SZ1 Standard Zoom Lens. Use the "desired image size" field below to get an estimate of how far to place your projector from your screen with this lens.
-
- Throw Ratio: 1.60:1 - 2.00:1
- Resolution: 1024x768 DLP
- Aspect Ratio: 4:3
- Brightness: 6000 ANSI Lumens
- Light Source: Lamp
- Price: $3,395
Calculate Throw Distance
With this lens, to get a 100" diagonal image, place this projector between 10'-8" and 13'-4" from the screen.
- Throw Ratio: 1.60:1 - 2.00:1
- Resolution: 1024x768 DLP
- Aspect Ratio: 4:3
- Brightness: 6000 ANSI Lumens
- Light Source: Lamp
- Price: $3,395
Calculate Throw Distance
With this lens, to get a 100" diagonal image, place this projector between 10'-8" and 13'-4" from the screen.
-
- Throw Ratio: 1.60:1 - 2.00:1
- Resolution: 1280x800 DLP
- Aspect Ratio: 16:10
- Brightness: 5000 ANSI Lumens
- Light Source: Lamp
- Price: $3,595
Calculate Throw Distance
With this lens, to get a 100" diagonal image, place this projector between 11'-4" and 14'-2" from the screen.
- Throw Ratio: 1.60:1 - 2.00:1
- Resolution: 1280x800 DLP
- Aspect Ratio: 16:10
- Brightness: 5000 ANSI Lumens
- Light Source: Lamp
- Price: $3,595
Calculate Throw Distance
With this lens, to get a 100" diagonal image, place this projector between 11'-4" and 14'-2" from the screen.
-
- Throw Ratio: 1.54:1 - 1.93:1
- Resolution: 1920x1080 DLP
- Aspect Ratio: 16:9
- Brightness: 4700 ANSI Lumens
- Light Source: Lamp
Calculate Throw Distance
With this lens, to get a 100" diagonal image, place this projector between 11'-2" and 14'-0" from the screen.
- Throw Ratio: 1.54:1 - 1.93:1
- Resolution: 1920x1080 DLP
- Aspect Ratio: 16:9
- Brightness: 4700 ANSI Lumens
- Light Source: Lamp
Calculate Throw Distance
With this lens, to get a 100" diagonal image, place this projector between 11'-2" and 14'-0" from the screen.
-
- Throw Ratio: 1.54:1 - 1.93:1
- Resolution: 1920x1080 DLP
- Aspect Ratio: 16:9
- Brightness: 2000 ANSI Lumens
- Light Source: Lamp
Calculate Throw Distance
With this lens, to get a 100" diagonal image, place this projector between 11'-2" and 14'-0" from the screen.
- Throw Ratio: 1.54:1 - 1.93:1
- Resolution: 1920x1080 DLP
- Aspect Ratio: 16:9
- Brightness: 2000 ANSI Lumens
- Light Source: Lamp
Calculate Throw Distance
With this lens, to get a 100" diagonal image, place this projector between 11'-2" and 14'-0" from the screen.
