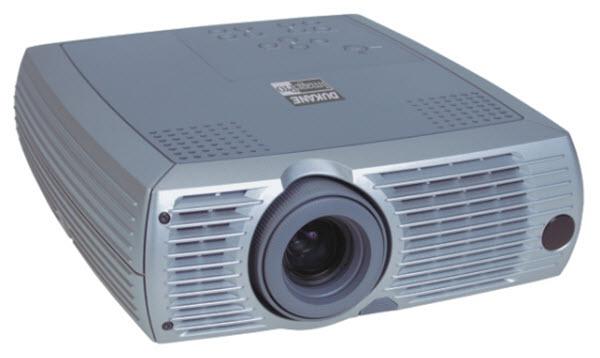

The Dukane ImagePro 8043A Projector is a SVGA Portable Projector. This lamp based projector is capable of displaying 1,100 Lumens at its brightest setting with a native resolution of 800x600 . The internal 3LCD technology is a 3-chip design that delivers good color brightness and a wide color gamut. This projector was first available for purchase in April 2003 and has been by Dukane.
Product Downloads
Helpful Links
Buy a Lamp
Get a Repair
Get a Screen
Buy LocalDukane ImagePro 8043A Projector Specifications
- MSRP
- $3,395
- White Brightness
- 1,100 Lumens (ANSI)1
- Resolution
- 800x600
- Aspect Ratio
- 4:3 (SVGA)
- Contrast
- 400:1
- Display Type
- 0.60" 3LCD
- Color Processing
- 8-bit
- Video Modes
- **
- Data Modes
- MAX 1280x1024
- Light Source
- 132W UHP bulb
- Light Source Life
- 2,000 hours
- Lamp Model
- 456-235 Buy 456-235 Lamp
- Included Lens
- 1.23x manual zoom , manual focus
- Optional Lenses
- No
- Lens Shift
- No
- Throw Distance
- 5.9' - 25.0' Calculate Throw Distance
- Image Size
- 40.00" - 210.00"
- Throw Ratio
- 1.78:1 - 2.22:1
- Projector Placement
- For a diagonal screen, place the projector lens between 11'-10" and 14'-10" from the screen.
- Digital Zoom
- Yes
- Digital Keystone
- Vertical only
- Projector Size
- 3.70" x 10.00" x 12.00"
- Weight
- 5.7 lbs
- Audible Noise
- 34 dB
- Internal Speakers
- 1.0 Watts Mono
- Power
- 210 Watts 100V - 240V
