Calculate Throw Distance
Highlights
Calculate Throw Distance

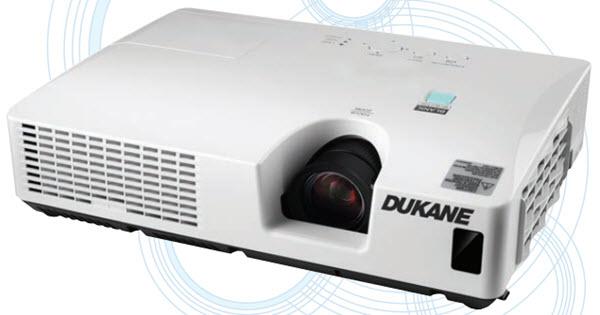

The Dukane ImagePro 8792H Projector is a XGA Portable Projector. This lamp based projector is capable of displaying 3,200 Lumens at its brightest setting with a native resolution of 1024x768 . The internal 3LCD technology is a 3-chip design that delivers good color brightness and a wide color gamut. Weighing in at 5.0 lbs, this portable projector is bright and compact, perfect for business travelers, taking on a family vacation or just moving from room to room. This projector was first available for purchase in December 2010 and has been by Dukane. The Dukane ImagePro 8792H projector was manufactured by Hitachi as the CPX9.
Product Downloads
Helpful Links
Buy a Lamp
Get a Repair
Get a Screen
Buy LocalDukane ImagePro 8792H Projector Specifications
- MSRP
- $1,739
- White Brightness
- 3,200 Lumens (ANSI)1 / 2,500 Lumens
- Resolution
- 1024x768
- Aspect Ratio
- 4:3 (XGA)
- Contrast
- 500:1
- Display Type
- 0.63" 3LCD
- Color Processing
- 8-bit
- Video Modes
- 720p, 1080i, 1080p/60, 576i, 480p, 480i
- Data Modes
- MAX 1600x1200
- Light Source
- 200W UHP bulb
- Light Source Life
- 3,000 hours / 4,000 hours
- Included Lens
- 1.2x manual zoom , manual focus
- Optional Lenses
- No
- Lens Shift
- No
- Throw Distance
- 3.0' - 25.4' Calculate Throw Distance
- Image Size
- 30.00" - 300.00"
- Throw Ratio
- 1.27:1 - 1.53:1
- Projector Placement
- For a diagonal screen, place the projector lens between 8'-5" and 10'-2" from the screen.
- Digital Keystone
- Vertical only
- Projector Size
- 3.00" x 12.00" x 8.70"
- Weight
- 5.0 lbs
- Audible Noise
- 35 dB / 29 dB
- Internal Speakers
- 1.0 Watts Mono
- Power
- 290 Watts 100V - 240V
- Connection Panel
-
Composite: RCAHDMIRS232: DB-9pinS-VideoVGA In: Dsub-15pin
- Features
-
Blackboard Mode
- Additional Features
- Lock slot, security bar and transition detector
