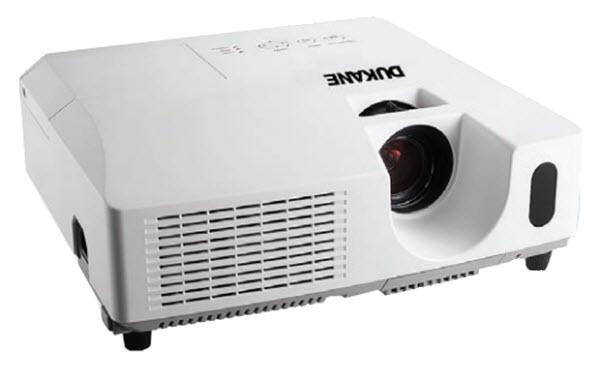

The Dukane ImagePro 8922H Projector is a XGA Conference Room Projector. This lamp based projector is capable of displaying 3,200 Lumens at its brightest setting with a native resolution of 1024x768 . The internal 3LCD technology is a 3-chip design that delivers good color brightness and a wide color gamut. This projector was first available for purchase in May 2010 and has been by Dukane. The Dukane ImagePro 8922H projector was manufactured by Hitachi as the CP-X3011. This projector was also marketed as the 3M X36.
Product Downloads
Helpful Links
Buy a Lamp
Get a Repair
Get a Screen
Buy LocalDukane ImagePro 8922H Projector Specifications
- MSRP
- $1,489
- White Brightness
- 3,200 Lumens (ANSI)1 / 2,700 Lumens
- Resolution
- 1024x768
- Aspect Ratio
- 4:3 (XGA)
- Contrast
- 2,000:1
- Dynamic Iris
- Yes
- Display Type
- 0.63" 3LCD
- Color Processing
- 8-bit
- Video Modes
- 720p, 1080i, 1080p/60, 576i, 480p, 480i
- Data Modes
- MAX 1600x1200
- Light Source
- 210W UHB bulb
- Light Source Life
- 3,000 hours / 6,000 hours
- Lamp Model
- DT01021 Buy DT01021 Lamp
- Included Lens
- 1.2x manual zoom , manual focus
- Optional Lenses
- No
- Lens Shift
- No
- Throw Distance
- 3.4' - 29.7' Calculate Throw Distance
- Image Size
- 30.00" - 300.00"
- Throw Ratio
- 1.49:1 - 1.76:1
- Projector Placement
- For a diagonal screen, place the projector lens between 9'-10" and 11'-8" from the screen.
- Digital Keystone
- Vertical only
- Projector Size
- 3.90" x 12.50" x 11.30"
- Weight
- 8.2 lbs
- Audible Noise
- 35 dB / 29 dB
- Internal Speakers
- 8.0 Watts × 2
- Power
- 330 Watts 100V - 240V
- Connection Panel
-
Component: RCAComposite: RCARS232: DB-9pinS-VideoUSBVGA In: Dsub-15pin
- Features
-
Closed CaptioningBlackboard Mode
- Additional Features
- Easy maintenance in ceiling mount with lamp access on top & 5000 hour filter with side access.
