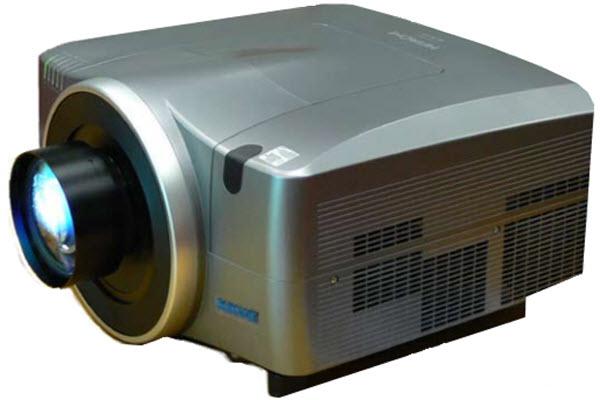

Dukane ImagePro 8952P Projector front view
Dukane ImagePro 8952P Projector front view

Dukane ImagePro 8952P Projector

SXGA+ Large Venue Projector
Highlights Specifications
Highlights Specifications
Calculate Throw Distance

Highlights

Calculate Throw Distance

The Dukane ImagePro 8952P Projector is a SXGA+ Large Venue Projector. This lamp based projector is capable of displaying 7,000 Lumens at its brightest setting with a native resolution of 1400x1050 . The internal 3LCD technology is a 3-chip design that delivers good color brightness and a wide color gamut. The unique projector lens has the ability to be shifted to allow greater flexibility in positioning the projector relative to the screen. This projector was first available for purchase in August 2009 and has been by Dukane. The Dukane ImagePro 8952P projector was manufactured by Hitachi as the CP-SX12000.

Product Downloads

Product Sheet
User Manual

Helpful Links

Buy a Lamp Get a Repair Get a Screen Buy Local
Panasonic PT-RQ35KU
WUXGA Large Venue Laser Projector
Panasonic PT-RQ35KU
WUXGA Large Venue Projector

Dukane ImagePro 8952P Projector Specifications

MSRP
$28,489
Status
Discontinued
Released
August 2009
Warranty
3 Years
User Reviews
Review this Projector

Switch to Metric
White Brightness
7,000 Lumens (ANSI)1 / 5,600 Lumens
Resolution
1400x1050
Aspect Ratio
4:3 (SXGA+)
Contrast
2,500:1
Dynamic Iris
Yes
Display Type
1.30" 3LCD
Color Processing
8-bit
Video Modes
720p, 1080i, 1080p/60, 525i, 525p, 576i, 625i, 1125i, 480p, 480i
Data Modes
MAX 1600x1200
Light Source
350W UHB bulb
Light Source Life
2,000 hours  / 3,000 hours
Lamp Model
DT01001  Buy DT01001 Lamp
Included Lens
No
Optional Lenses




LL-805 Long Zoom Lens Throw Ratio 2.80:1-5.20:1
SD-804 Short Zoom Lens Throw Ratio 2.20:1-2.90:1
SL-802 Short Zoom Lens Throw Ratio 1.20:1-1.50:1
SL-803 Short Zoom Lens Throw Ratio 1.50:1-2.20:1
USL-801 Ultra Short Zoom Lens Throw Ratio 0.50:1-0.60:1
Lens Shift
Horizontal & Vertical
Digital Keystone
Horizontal & Vertical
Projector Size
10.70" x 18.70" x 18.50"
Weight
28.9 lbs
Audible Noise
40 dB  / 32 dB
Internal Speakers
No
Power
540 Watts 100V - 240V
Connection Panel
Component: RCA
Composite: RCA
Composite: BNC
DVI Digital Input
HDMI
Network: RJ-45
RGB In: BNC
RS232: DB-9pin
S-Video
VGA In: Dsub-15pin x 2
Features
Picture-in-Picture
2:3 Pulldown
Closed Captioning
Blackboard Mode
Additional Features
Professional series LCD projector with a variety of optional lenses and network control.

1 "Lumens (ANSI)" measured in accordance with ANSI IT7.228
