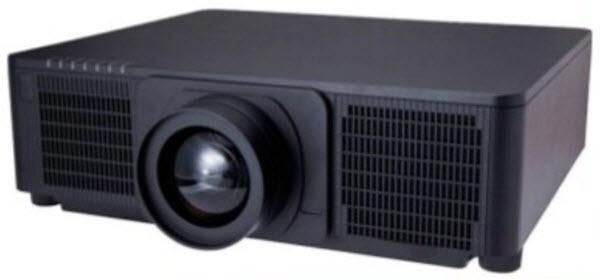

Dukane ImagePro 9005-L Projector front view
Dukane ImagePro 9005-L Projector front view

Dukane ImagePro 9005-L Projector

XGA Large Venue Projector
Highlights Specifications
Highlights Specifications
Calculate Throw Distance

Highlights

Calculate Throw Distance

The Dukane ImagePro 9005-L Projector is a XGA Large Venue Projector. This lamp based projector is capable of displaying 10,000 Lumens at its brightest setting with a native resolution of 1024x768 . The internal DLP technology touts higher contrast, less visible pixels and more portability. The unique projector lens has the ability to be shifted to allow greater flexibility in positioning the projector relative to the screen. This projector is not being produced by Dukane any longer and was .

Product Downloads

Product Sheet
User Manual

Helpful Links

Buy a Lamp Get a Repair Get a Screen Buy Local
Epson Home Cinema 5050UB
1080P Home Theater Projector
Epson Home Cinema 5050UB
1080P Home Theater Projector

Dukane ImagePro 9005-L Projector Specifications

MSRP
$19,989
Status
Discontinued
Warranty
5 Years
User Reviews
Review this Projector

Switch to Metric
Brightness
10,000 Lumens (ANSI)1
Resolution
1024x768
Aspect Ratio
4:3 (XGA)
Contrast
2,000:1
Dynamic Iris
Yes
Display Type
DLP x 1
Color Processing
8-bit
Video Modes
720p, 1080i, 1080p/60, 576i, 480p, 480i
Data Modes
MAX 1600x1200
Light Source
370W P-VIP bulb x 2
Light Source Life
2,000 hours  / 4,000 hours
Lamp Model
456-9005 / DT01581  Buy 456-9005 Lamp
Included Lens
1.5x Powered zoom , Powered focus
Optional Lenses




LL-905 Long Zoom Lens Throw Ratio 3.60:1-5.80:1
ML-904 Middle Zoom Lens Throw Ratio 2.50:1-3.80:1
SL-902 Short Zoom Lens Throw Ratio 1.20:1-1.80:1
UL906 Ultra Long Zoom Lens Throw Ratio 5.70:1-9.10:1
USL-901 Ultra Short Zoom Lens Throw Ratio 0.80:1-1.00:1
Lens Shift
Horizontal & Vertical
Throw Distance
8.0' - 70.0'  Calculate Throw Distance
Image Size
48.00" - 617.65"
Throw Ratio
1.70:1 - 2.50:1
Digital Keystone
Horizontal & Vertical
Projector Size
6.70" x 21.10" x 17.20"
Weight
36.9 lbs
Audible Noise
36 dB  / 29 dB
Internal Speakers
No
Power
1,060 Watts 110V - 240V
Connection Panel
Composite: RCA
DVI Digital Input
HDBaseT: RJ-45
HDMI x 2
Network: RJ-45
RGB In: BNC
RS232: DB-9pin
USB
VGA In: Dsub-15pin
VGA Out: Dsub-15pin
Features
Picture-in-Picture
Closed Captioning
DICOM
Operate 24/7
Edge Blending
Lens Memory
Crestron RoomView™
Additional Features
Dukane's 9005-L is an HDBaseT-enabled projector which delivers whole-home and commercial distribution of uncompressed HD multimedia content over a single CAT5e/6 cable

1 "Lumens (ANSI)" measured in accordance with ANSI IT7.228
